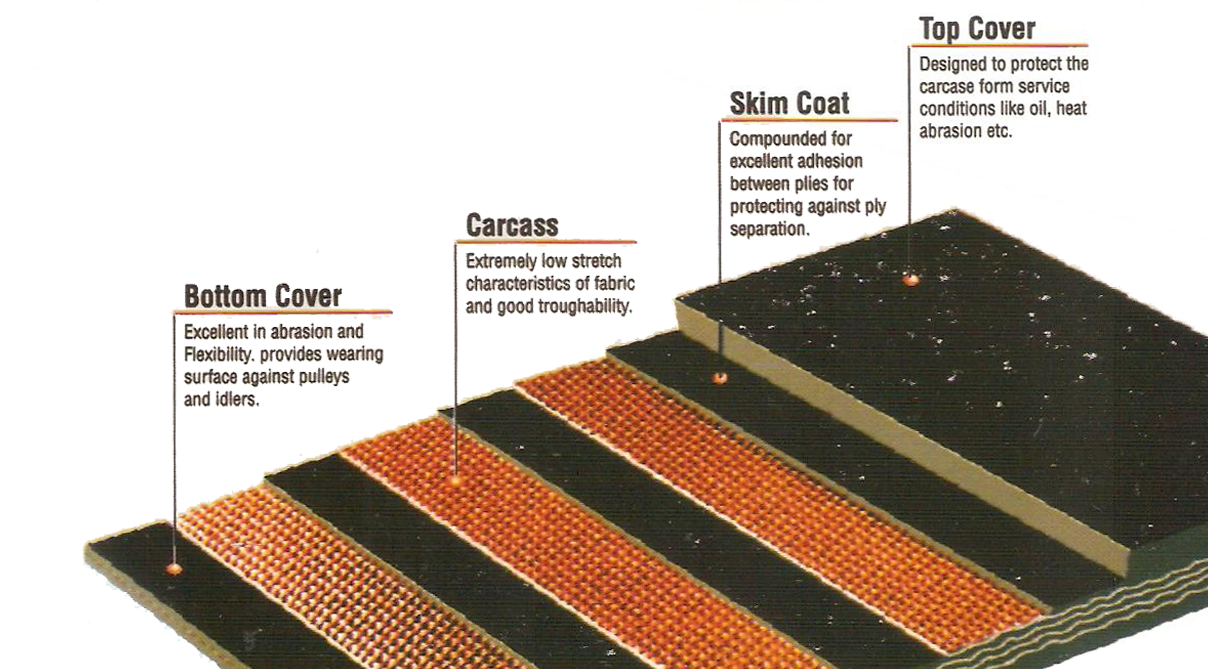

Conveyor Belt Structure / Construction

Know Your Conveyor Belt

The usual designation of conveyor belt is as follows:

Typical example of belt designation

Our Product Range

Width: Upto 2000 mm width
Length: Equivalent to roll dia 2.8 mtr max.( i.e., 300 mtrs approx. length) depending on belt width and/ or thickness (to be confirmed with Technical Department ).
Cover Grades: M24, N17, W, X, Y,Z, SAR, SHR T1, SHRT2, SHRT3, UHR, FR, OR, etc.
Cover Thickness: Upto 10 mm top and 5 mm bottom.
Belt Ratings: Upto 2000 kN/mtr, 8 ply max.; maximum total belt thickness 25 mm.

Fabric Reinforcements

The carcass is made up of tailor-made polyester/ polyamide (EP) fabrics, polyamide / polyamide (NN) fabrics or special heat resistant fabrics as per customer requirements.

Minimum Information required in designing a conveyor belt
