ESCON Conveyor Belt

With employment of computerized controls to varied engineering applications, there is enormous need of automation in same. Conveyor belts offer idyllic example of quick and efficient automation. We hold the capacity to fabricate every kind of conveyor belts for light to heavy conveying need of various industrial fragments. We also offer finest quality of Flat Transmission Rubber Belts.

Conveyor Rubber Belts

General Purpose Belts Grade M-24 and N-17 with abrasion resistant covers for carrying sharp and bulky materials at high speed.
Heat Resistant Belts made with special covers for conveying at hot temperatures up to 230°C.
Fire Resistant Belts with antistatic properties ideally suited for transportation in Fire hazard applications.
Oil Resistant Belts to cater to medium and high oil resistant application.
Chemical Resistant Belts for operating under highly corrosive conditions such as urea & potash handling plants.
Hygienic Belts for use in the food processing industries including tea.
Rough Top Belts for the transportation of packed goods, especially on slopes.
Fire Resistant Belts with antistatic properties ideally suited for transportation in Fire hazard applications in under-ground mines. These belts are produces to comply with corresponding CSA, DIN, AS & GOST standards.

Flat Transmission Rubber Belts

For use on Pulleys in Industries and agriculture for the transmission of power. These belts can be applied on heavy drives for trouble-free operation and resistance to shock loads.

Chevron Conveyor Belting

Chevron Conveyor Belting is used in the application where the Inclination angle is too high and the conveying material is rolling back, we are offering Chevron Conveyor belting to prevent the material from sliding backwards.

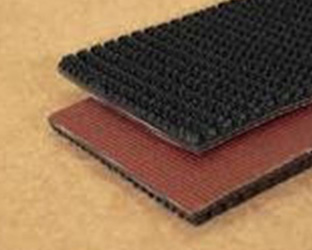

Rough Top Belts

Rough top belts are used for transportation of packed materials. We are offering these belt to handle material packed in poly bags for cement factory, fertilizer plant and feedmills etc. These belts are available in all grade and sizes.

Cover Selection

Conveyor Belts are manufactured with the following cover grades to the meet requirement of specific applications

Belt Type	General Application
M-24	Suitable for rugged services as crushed metallic ores, limestone, granite etc.
N-17	Suitable for moderately abrasives like Asbestos, Ash Bauxite Cement, lime etc.
HR T1	Suitable for transporting hot material (Upto 125°C for coarse material and 100°C for fines)
HR T2	Suitable for transporting hot material (Upto 150°C for coarse and 125°C for fines)
SHR T3	Suitable for transporting hot material (Upto 180°C coarse and 150°C for fines)
UHR(Ultra Heat Resistant)	Suitable for transporting hot material ( upto 230°C coarse and 180°C for fines )
Oil Resistant(or)	Compounded to give very high resistance to minerals & vegetable oil etc.
Food Conveyor(Hygienic)	Suitable for handling confectionary, food, pharmaceuticals etc.
Fire Resistant(FR)	Recommended for use in coal & such types of mines where ambient temperature may not be high but there is distinct hazard of belts being enveloped in fire.

Belt Selection Chart

BELT DESIGNATION		MAX-RECOMMENDED WORKING TENSION (Vulcanized Splice)	NOMINAL CARCASS THICKNESS APPRX	MAX.BELT WIDTH (mm) FOR SATISFACTORY LOAD SUPPORT (Material Density in T/Cub M)			MIN BELT WIDTH (mm) FOR SATISFACTORY TROUGHING
TYPE	RATING	(KN/M)	(mm)	UPTO 1.0	UPTO 1.5	UPTO 2.5	20°	30°	45°
GENERAL DUTY	200/2	20	2.1	650	500	400	300	300	350
	250/2	25	2.2	650	600	450	400	450	500
	315/3	31	3.2	1000	800	650	400	450	500
	400/3	40	3.3	1050	900	650	500	500	500
	500/3	50	3.6	1200	900	800	500	500	500
	630/3	63	3.8	1200	1000	800	500	500	500
	MEDIUM DUTY	400/4	40	4.5	1200	1000	800	500	500
500/4		55	4.6	1200	1050	900	500	500	650
630/4		70	4.9	1400	1200	900	500	500	650
800/4		90	5.6	1600	1400	1000	500	500	650
1000/4		110	6.0	1600	1400	1200	500	800	800
1250/4		140	6.2	1600	1600	1400	650	800	900
1400/4		145	6.8	1600	1600	1600	650	800	900
1250/4		140	7.1	1600	1600	1600	650	800	900
1400/5		155	7.8	1600	1600	1600	650	500	900
HEAVY DUTY		315/3	31	3.7	1200	1000	800	500	500
	400/3	40	3.9	1200	1050	900	500	500	600
	500/3	50	4.3	1400	1200	1000	500	500	650
	630/3	63	4.6	1400	1200	1050	500	650	650
	630/4	70	5.7	1600	1400	1200	500	800	800
	800/4	90	6.2	1600	1600	1400	650	800	900
	1000/4	110	6.8	1600	1600	1500	750	900	900
	1250/4	140	7.2	1600	1600	1600	800	1000	1000
	1250/5	140	8.0	1600	1600	1600	800	1000	1200
	1400/5	155	8.2	1600	1600	1600	800	1000	1200
	1600/5	180	9.0	1600	1600	1600	800	1000	1200
	1800/5	200	9.2	1600	1600	1600	800	1000	1200
	2000/5	220	9.4	1600	1600	1600	800	1400	1200
